Specifications Table
| Model | TSF2020 |
| Lens Material | Polycarbonate with Hard Coat |
| Frame Material | PC (One-Piece Rigid, Matte Black) |
| Ventilation | Direct Top Vent Slots (6–8 channels) |
| Eye Seal | Soft Perimeter Gasket |
| Retention System | Wide Elastic Strap with Dual Side Buckles |
| Lens Color | Clear |
| Frame Color | Matte Black |
| Functions | Anti-Scratch, Anti-Fog, Impact Resistant |
| MOQ | 1,000 pcs |
| Packaging | Polybag per pair, 12 pairs per white box, carton TBC |
Key Features
-

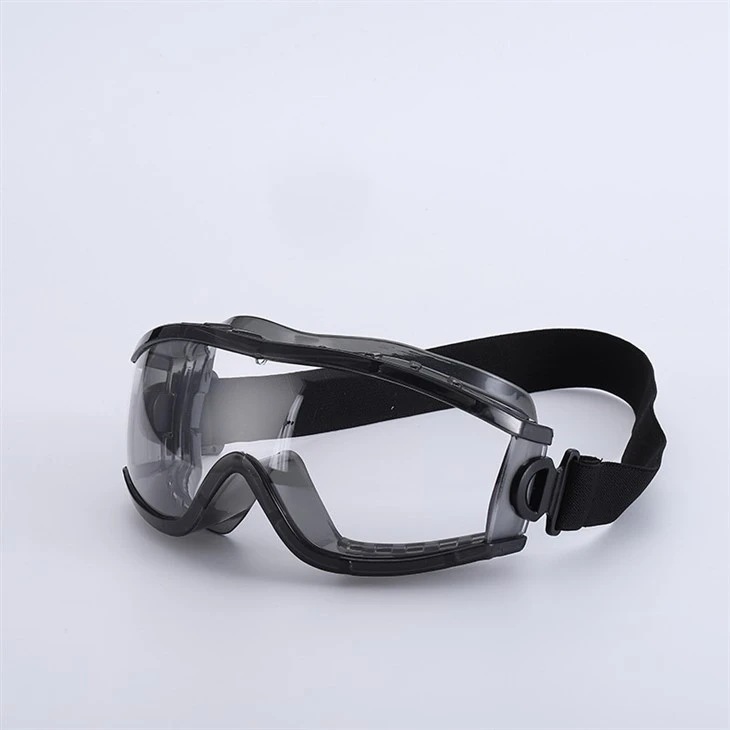

Panoramic Extra-Wide PC Lens - The single-piece polycarbonate lens spans a substantially wider arc than standard industrial goggles, extending coverage across the full orbital area and well into the peripheral zones above, below, and to both sides. This is the largest lens footprint in the TSF2000 series - closer in scale to motorsport eyewear than to lab goggles. Clear lens for maximum optical brightness in all lighting environments.
Top-Mounted Direct Ventilation Channels - Six to eight narrow ventilation slots are molded directly into the top edge of the PC frame - a placement that differs from both the lower-side vents on TSF2019 and the indirect side vents on TSF2018. Top-mounted vents allow warm air to escape upward via natural convection, reducing fogging on the inner lens surface without directing incoming air toward the eyes or creating a direct splash path from below.
One-Piece Rigid PC Frame Construction - The frame body is injection-molded from a single piece of polycarbonate in matte black, with no secondary frame materials or assembly joints. Monolithic structure delivers uniform rigidity across the entire frame perimeter - no flex points that could compromise the seal or create pressure imbalances against the face.
Full Perimeter Soft Face Seal - The inner rim features a continuous flexible soft gasket that follows the contour of the wearer's face. Comfortable for extended wear without the heat buildup common with thick foam seals.
Wide Elastic Strap with Side-Adjusting Buckles - The broad black elastic strap is wider than the straps on TSF2017 and TSF2018, distributing retention force across a larger surface area to minimize pressure points. Plastic slide buckles on both sides allow quick tension adjustment without removing the goggles - practical for on-site fitting over hard hats.
Motorsport and Outdoor Multi-Use Design - The combination of maximum lens coverage, top-vent convection cooling, and wide strap system makes TSF2020 equally suitable across industrial grinding and cutting, ATV and motorcycle riding, construction site dust exposure, and woodworking chip environments.
